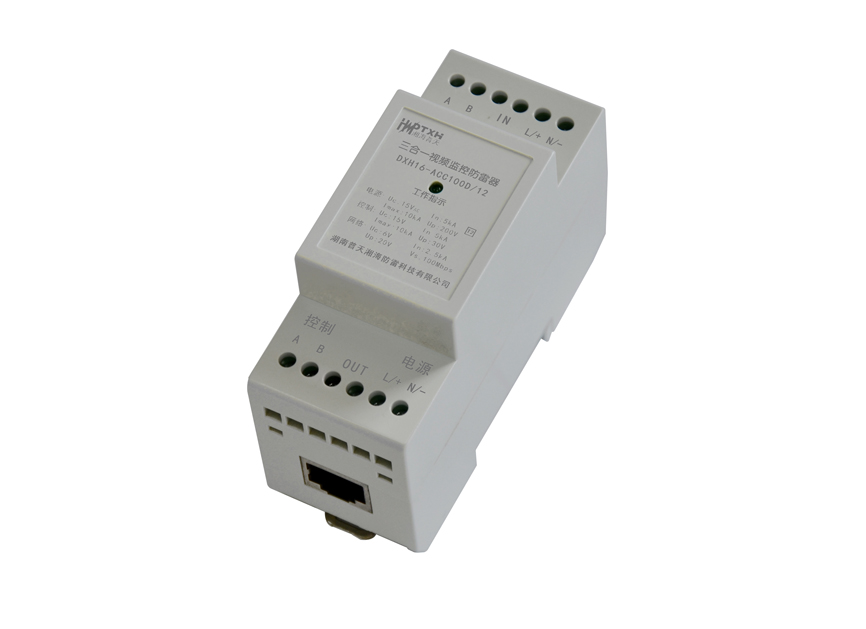

DXH16-ACC100D/12三合一视频监控防雷器（导轨式、电源+控制+网络）
DXH16-ACC100D/12/24/220导轨式三合一视频监控防雷器系列
技术参数
|
名称 |
型号 |
规格 |
接口
类型 |
特性
阻抗
(Ω) |
额定工
作电压
Un |
最大持
续工作
电压
Uc |
电压
保护
水平
Up（V） |
传输
特性 |
标称放
电电流
In(kA,
8/20μs) |
最大放
电电流
Imax(kA,
8/20μs) |
响应
时间
tA(ns) |
插入
损耗
(dB) |
|
三合一视频监控防雷器 |
DXH16-AVC/ |
12V、小尺寸 |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
24V、小尺寸 |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
220V、小尺寸 |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
DXH16-AVC/ |
12V、中尺寸 |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
24V、中尺寸 |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
220V、中尺寸 |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
DXH16-AVCD/ |
导轨式12V |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
导轨式24V |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
导轨式220V |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
DXH16-AVC/ |
12V、带遥信 |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
24V、带遥信 |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
220V、带遥信 |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
DXH16-ACC100/ |
电源12V |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
电源24V |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
电源220V |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
网络 |
RJ45 |
— |
5V |
6V |
20 |
100Mbps |
2.5 |
5 |
≤1 |
≤0.2 |
|
DXH16-ACC100D/ |
导轨式、电源12V |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
导轨式、电源24V |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
导轨式、电源220V |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
网络 |
RJ45 |
— |
5V |
6V |
20 |
100Mbps |
2.5 |
5 |
≤1 |
≤0.2 |
|
DXH16-AVC100/ |
电源12V |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
电源24V |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
电源220V |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
网络 |
RJ45 |
— |
5V |
6V |
20 |
100Mbps |
2.5 |
5 |
≤1 |
≤0.2 |
|
DXH16-AVCC100/ |
电源12V |
接线端子 |
— |
12VAC |
15VAC |
200 |
— |
5 |
10 |
≤25 |
— |
|
电源24V |
— |
24VAC |
30VAC |
300 |
— |
5 |
10 |
≤25 |
— |
|
电源220V |
— |
220VAC |
320VAC |
1100 |
— |
5 |
10 |
≤25 |
— |
|
视频 |
BNC |
75 |
5V |
6V |
40 |
10MHz |
5 |
10 |
≤1 |
≤0.5 |
|
控制 |
接线端子 |
— |
12V |
15V |
30 |
10Mbps |
5 |
10 |
≤1 |
≤0.2 |
|
网络 |
RJ45 |
— |
5V |
6V |
20 |
100Mbps |
2.5 |
5 |
≤1 |
≤0.2 | |
|
|
|
